String Wound Filter Series

Current location:Home >> Products >>  String Wound Filter Series

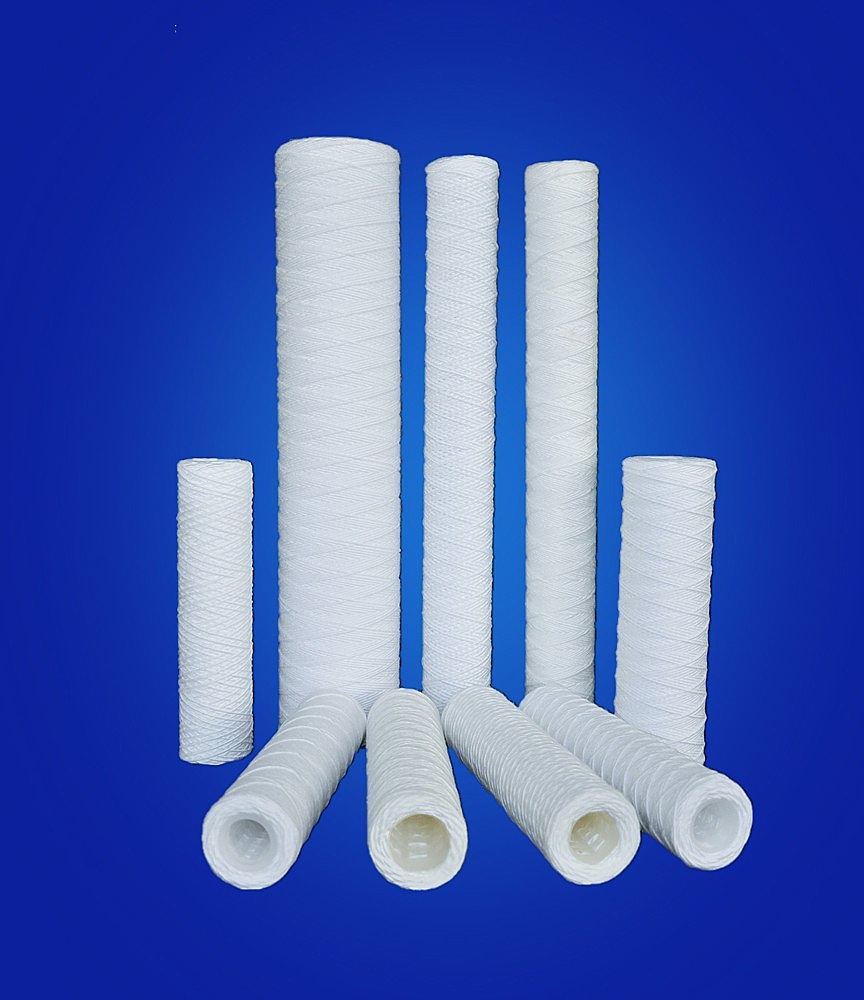

The XSJ String Wound Filter Cartridges Series are made of weaving fibre yarn reeling on porous framework. The yarn features fine filtering and its materials are polyacrylonitrile fibre, orlon fibre, degrease cotton fibre and so on. We can make different precision filter cartridge by controlling degree of tightness and density of yarn reeling. They can cleanup efficiently suspending granules in all kinds of liquids and purify these liquids.

Specifications

Dimensions

  ◆OD: 63mm   115mm

  ◆ID:  28mm    30mm

  ◆Length: 9.75''   9.87''   10''   20''   30''    40''

Material Of Constructions

  ◆Filter media: polyethylene, degrease  cotton fiber, glass fiber

  ◆Core: PP, Stainless Steel

Performance

  ◆Micron Rating: 1μm  5μm   10μm   20μm   30μm   50μm   75μm   100μm

  ◆Polypropylene material for non-organic solvent, maximum recommended operating temperature≤60oC

  ◆Degrease cotton material filter cartridge with stainless core apply to organic solvent, water, oil, alkalinity solvent, beverage,  pharmaceuticals, maximum recommended operating temperature: 120oC

Applications

  ◆Food&Beverage
  ◆Semiconductor
  ◆Pharmaceuticals

  ◆organic solvents

  ◆Industrial water treatment

Features

  ◆Fits all the standard housings

  ◆Low pressure drop, high dirt holding capacity and long service life

  ◆Loose outer layers and tight inner layers offers effective depth filtration

  ◆Various filter media fit with various applications
