MMP Filter Cartridges

Current location:Home >> Products >>  MMP Filter Cartridges

1.The PP Microporous Membrane Pleated Filter Cartridges are constructed of pleated melt blown filter media. The melt blown filter media can provide removal of particles from 0.1μm to 50μm. Adaptors are thermally welded with media without using any glue on it, so it is impossible to cause any pollution.

Specifications

Dimensions

  ◆Length: 5 ″  10 ″  20 ″  30″   40″

  ◆OD: 2.7″(69mm ),   3.15″(80mm)

  ◆ID:  1.1″(28mm)

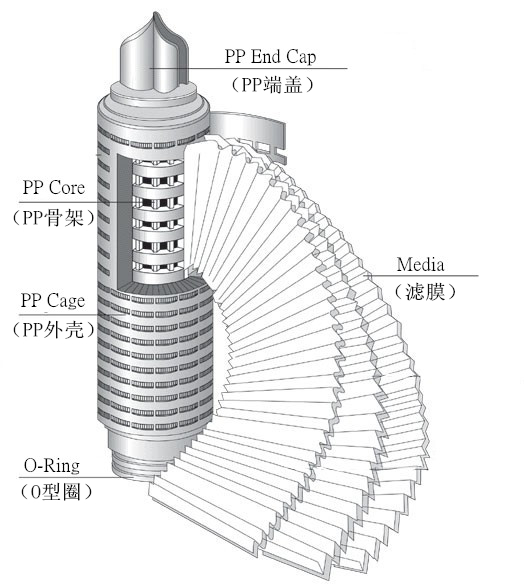

  ◆Material of constructions

  ◆Filter media : PP

  ◆Support/Drainage : PP

  ◆Cage/Core/End cap:PP

  ◆Seal Material: Silicone,  EPDM,  NBR,  Viton

  ◆Performance

  ◆Removal rating: 0.01μm   0.1μm   0.22μm  0.45μm   1μm  3μm  5μm  10μm   20μm  30μm  50 μm

  ◆End Cap configuration: DOE  SOE   222/Flat   L222/ Flat   226/Flat    222/ Fin L222/ Fin 226/ Fin



2.The N6 Microporous Membrane Pleated Filter Cartridges are constructed of Nylon 6 media and nonwoven support materials. Adaptors are thermally welded with media without using any glue on it, so it is impossible to cause any pollution.

Specifications

Dimensions

  ◆Length: 5 ″  10 ″  20 ″  30″   40″

  ◆OD: 2.7″(69mm ),   3.15″(80mm)

  ◆ID:  1.1″(28mm)

  ◆Material of constructions

  ◆Filter media : Nylon 6

  ◆Support/Drainage : PP

  ◆Cage/Core/End cap:PP

  ◆Seal Material: Silicone,  EPDM,  NBR,  Viton

Performance

  ◆Removal rating: 0.01μm   0.1μm   0.22μm  0.45μm   1μm

  ◆End Cap configuration: DOE  SOE   222/Flat   L222/ Flat  226/Flat   222/ Fin  L222/ Fin  226/ Fin



3.The PES Microporous Membrane Pleated Filter Cartridges are constructed of Polyethersulfone (PES) media and nonwoven support materials. The material of cage,core and end caps are polypropylene.Adaptors are thermally welded with media without using any glue on it, so it is impossible to cause any pollution.

Specifications

Dimensions

  ◆Length: 5 ″  10 ″  20 ″  30″   40″

  ◆OD: 2.7″(69mm ),   3.15″(80mm)

  ◆ID:  1.1″(28mm)

  ◆Material of constructions

  ◆Filter media : PES

  ◆Support/Drainage : PP

  ◆Cage/Core/End cap:PP

  ◆Seal Material: Silicone,  EPDM,  NBR,  Viton

Performance

  ◆Removal rating: 0.01μm   0.1μm   0.22μm  0.45μm

  ◆End Cap configuration: DOE  SOE   222/Flat   L222/ Flat   226/Flat    222/ Fin L222/ Fin 226/ Fin

4. The PTFE Microporous Membrane Pleated Filter Cartridges are constructed of hydrophobic Polytetrafluoroethylen membrane media and nonwoven support materials. Adaptors are thermally welded with media without using any glue on it, so it is impossible to cause any pollution.

Specifications

Dimensions

  ◆Length: 5 ″  10 ″  20 ″  30″   40″

  ◆OD: 2.7″(69mm ),   3.15″(80mm)

  ◆ID:  1.1″(28mm)

  ◆Material of constructions

  ◆Filter media : PTFE

  ◆Support/Drainage : PP

  ◆Cage/Core/End cap:PP

  ◆Seal Material: Silicone,  EPDM,  NBR,  Viton

Performance

  ◆Removal rating: 0.01μm   0.1μm   0.22μm  0.45μm

  ◆End Cap configuration: DOE  SOE   222/Flat   L222/ Flat   226/Flat    222/ Fin L222/ Fin 226/ Fin



5.The PVDF Microporous Membrane Pleated Filter Cartridges are constructed of hydrophobic Polyvinylidene fluoride (PVDF) membrane media and nonwoven support materials. Adaptors are thermally welded with media without using any glue on it, so it is impossible to cause any pollution.

Specifications

Dimensions

  ◆Length: 5 ″  10 ″  20 ″  30″   40″

  ◆OD: 2.7″(69mm ),   3.15″(80mm)

  ◆ID:  1.1″(28mm)

  ◆Material of constructions

  ◆Filter media : PVDF

  ◆Support/Drainage : PP

  ◆Cage/Core/End cap:PP

  ◆Seal Material: Silicone,  EPDM,  NBR,  Viton

Performance

  ◆Removal rating: 0.01μm   0.1μm   0.22μm  0.45μm

  ◆End Cap configuration: DOE  SOE   222/Flat   L222/ Flat   226/Flat    222/ Fin L222/ Fin 226/ Fin  Applications

  ◆The XSJ Microporous Membrane Pleated Filter Cartridges Series can be used in the following industries

Electronics Industry: Reverse Osmosis Water

  ◆Pharmaceutical Industry: pharmaceutical, biotechnology and plasma products filtration, compressed air and gas filtration

  ◆Food and beverage:mineral water, soft drinks, fruit juice, wine

  ◆Chemical industry:  oil field , organic solvents, ink filter

  ◆Semiconductor: ultrapure gas filtration

  ◆Large-scale fermenter air

  ◆Intermediate product vessel venting

  ◆Autoclave vacuum break

Features

  ◆The XSJ Microporous Membrane Pleated Filter Cartridges Series have the following features.

  ◆Excellent chemical compatibility. Suitable for filtering organic solvents, acid bases.

  ◆Pleated design increased the filtration area.

  ◆Low pressure drop, long service life

  ◆Full range of removal ratings

  ◆Graded pore density for high dirt holding capacity
