Pleated Filter Cartridges

Current location:Home >> Products >>  Pleated Filter Cartridges

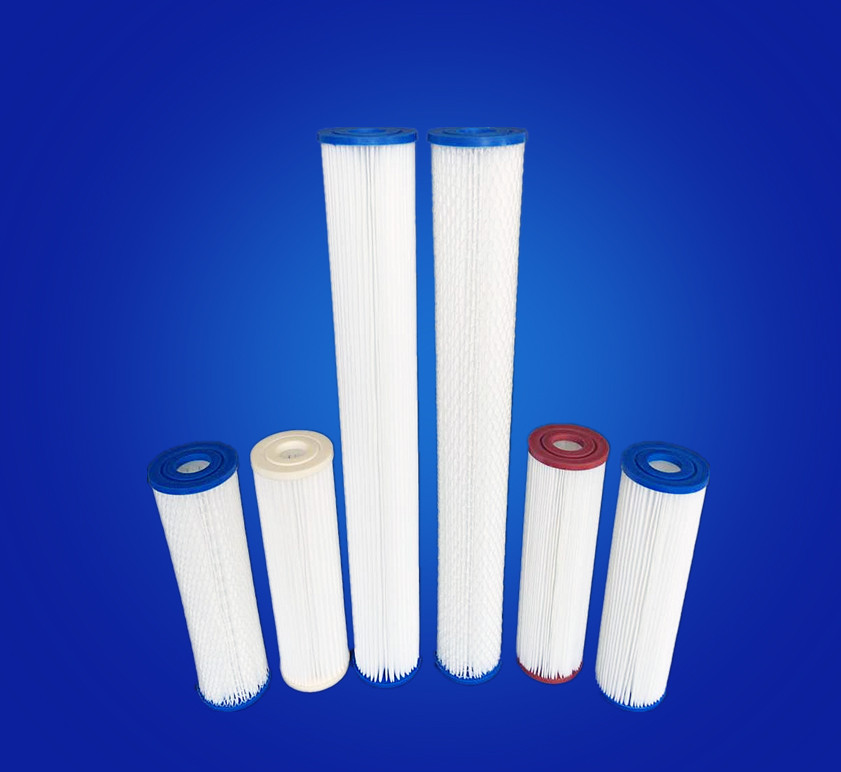

The XSJ Pleated Filter Cartridges Series are made of pleated polyester filter media. Because of the pleated design, this kind of filter cartridges increases surface area and contaminant removal.

Specifications

Dimensions

  ◆Length: 40mm   5 ″  9.87''   10 ″  20 ″  30″   40″

  ◆OD: 68mm   70mm   102mm    115mm     180mm

  ◆ID:  28mm      50mm       76mm

Material of constructions

  ◆Filter media : PP   Polyester   Cellulose

  ◆Core: PP

  ◆End cap:PU / Plastisol

Performance

  ◆Removal rating: 0.2μm   0.45μm   1μm   5μm  10μm   20μm  30μm  50 μm

  ◆Maximum operating temperature: 37.8°C

  ◆Maximum operating pressure: 4.0bar

  ◆Flow Rate per 10 ″cartridges:  3-10GPM, depend on micron rating

Applications

  ◆Industrial water and plating liquid

  ◆General water and R.O treatment

  ◆Industrial chemicals and organic solvents

  ◆Food and beverage

  ◆Acid-base liquid in chemical processing

  ◆Processing of sterile water and ultrapure water

Features

  ◆Low pressure drop

  ◆Pleated design increased surface area and contaminant removal

  ◆Designed for general water filtration purposes

  ◆Longer filtration runs for fewer change-out and less maintenance
