HF Filter Cartridge

Current location:Home >> Products >>  HF Filter Cartridge

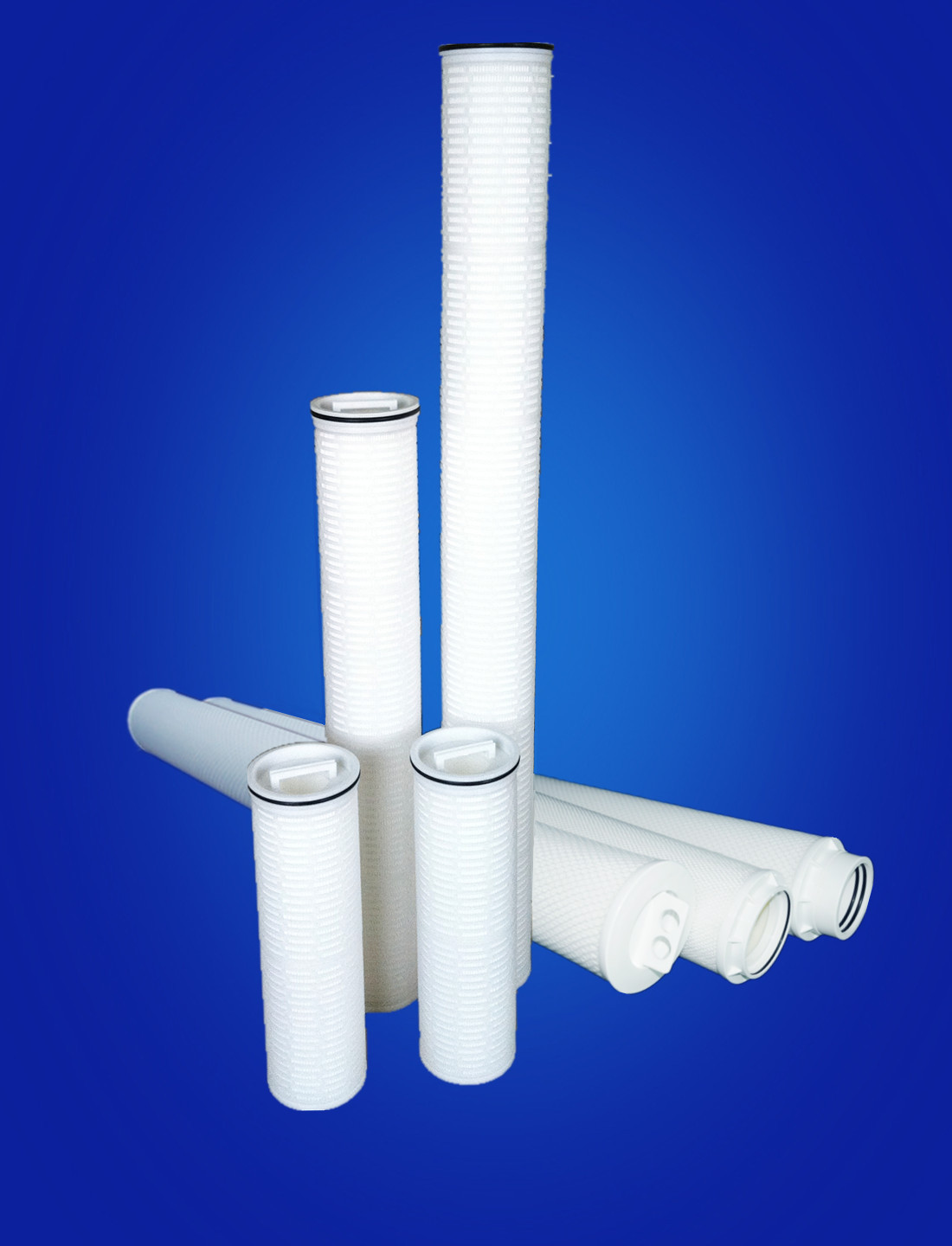

The filter material of the XSJ HF Filter Cartridge Series is polypropylene fiber cloth and polyester fiber cloth. This filter has a large diameter of 6 inches / 152 mm. It has no central supporting frame. This kind filter cartridge is single open-ended. The filtered liquid flow pattern is from inside to the outside. The long service life and high flow rate result in low investment and less manpower in many applications area.

Specifications

Dimensions

  ◆Length:   20''528mm)        40''(1022mm)       60''(1538mm)

  ◆Outside diameter: 6''(152mm)

Performance

  ◆Removal rating: 1μm   4.5μm    6μm   10μm   20μm  50 μm  70μm  100μm

Material of constructions

  ◆Seal Material: EPDM     NBR

Applications

  ◆Prefiltration of RO,Pretreatment of sea water desalination

  ◆Condensate water filtration,hot water recovery in power generation

  ◆API, solvents,and water filtration in BioPharm market

  ◆The filtration of bottled water, high Fructose,edible oil,soft drinks,and milk

  ◆Paints and coatings,Petrochemical,Refineries

  ◆Microelectronics,film,fiber and resin

Features

  ◆Gradient pore structure

  ◆Up to 110M3/H flow rate per filter cartridge for water filtration.

  ◆Maximum 50% reduction of filter system

  ◆20 inch /528mm,40 inch/1022mm and 60 inch/1538mm lengths are available

  ◆All contaminants can be removed within the cartridge because of the flow direction
